Solar Module Gluing and Framing Machine - Solar Manufacturing Machine

Type:

Specification:

Profile:
Solar Module Framing Machine is used to install the aluminum frame and overflow glue.
Inquiry NOW!

Solar Module Gluing and Framing Machine - Solar Manufacturing Machine

Machine Function:

Solar Module Framing Machine is used to install the aluminum frame and automatically overflow glue.

Technical Parameter

Name

Gluing & Framing machine

Model

OTZK-A

Machine Function

online gluing and framing

Applicable Panel Size

Maximum Panel size 2500×1400×3050mm

Minimum Panel size1580×808×3050mm

Machine efficiency

Working time≤35sec

Technical Process

After automatic framing, Input and Output of panel will be circulating in order

Working Voltage(V/Hz)

220

Working Speed

1 panel/(35sec)

Working Table Height (mm)

950±50

Stress(MPa)

0.6-0.7MPa

Air Consumption(L/min)

300

Detail picture

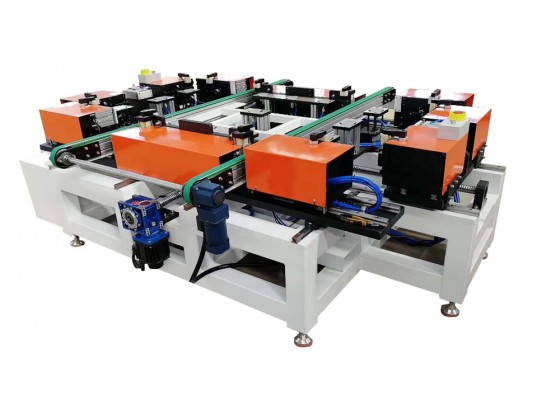

Solar Module Framing Machine


About US

Ooitech, One-stop Solution For Solar Panel Manufacturing Machine.

Has The Following Required Machinery And Accessories



Solar Manufacturing Machine



Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assitance, Solar Power Station installation technical support Etc.

Ooitech focus on:

Supply 10MW-500MW Solar Manufacturing Machine

Update the traditional PV line to newest MBB solar panel production line.


Main machinery

Solar Cell Tabber Stringer Machine

Automatic Solder Bussing Machine

Automatic Laminator

High Speed Automatic Layup Station

Automatic Framing Machine

Electroluminescence Test

Solar Simulator Or IV Tester

Solar Cell Laser Cutting Machine
