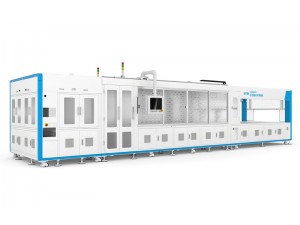

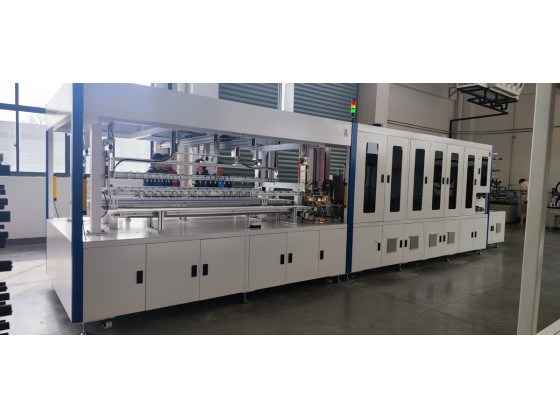

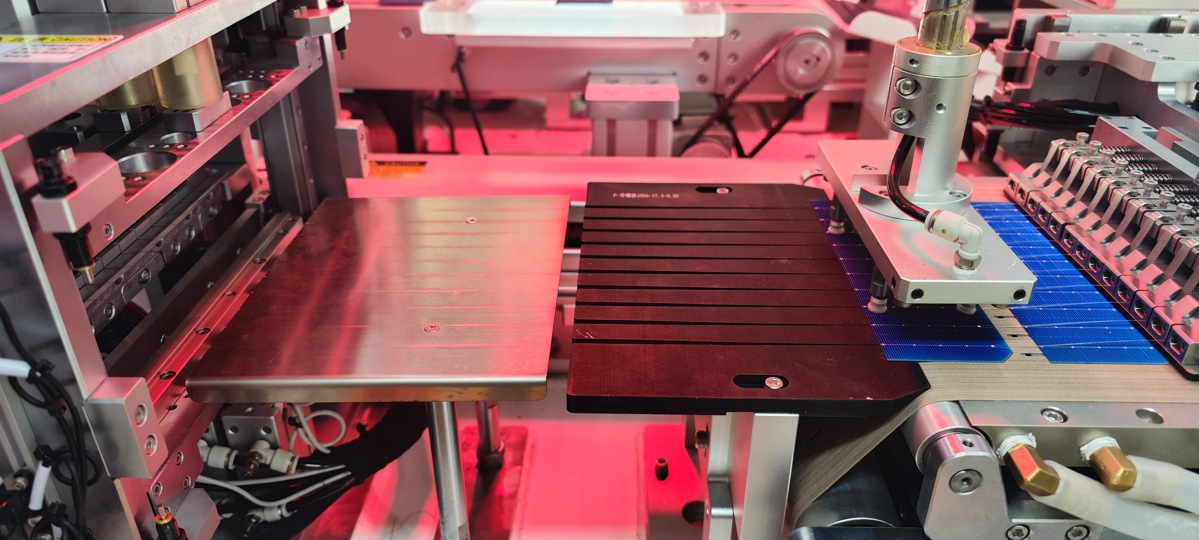

2023 New 9BB 16BB 20BB MBB PERC TOPCon HJT Solar Cell Tabber and Stringer
Solar cell tabber and stringer is suitable for soldering crystalline silicon solar cells into a string.
This machine can support 20BB.
Customers can choose to customize all white or blue and white.
l Qualified soldering effect, which approves soldering pulling testing higher than 1N/mm on cell surface (0.6*0.25mm ribbon, 180 degree pulling angle, and except HJT cell)
l Exchange time less than 120mins for changing different bus-bar number(9BB&12BB), including 30-60mins for changing tools and 30-60mins for tuning and calibrating. Exchange time less than 30mins for different cell sizes (whole cell, half-cell, third cell and quarter cell) while bus-bar number fixed.
l Ribbon extruding in advance before soldering.
l Pre-heating before soldering to avoid cell deformation efficiently
l Touchable integrated PC system can support remote assistance, we can provide online technical support for after-sales issues.
l Can be integrated with other Solar equipment conveniently.
l Remote assistance by Internet, the factory provides the network connection.
l No pre-heating required for Ribbon before soldering.
l No specialized engineer required for maintenance, but engineers must be trained and qualified.
l Solar cell soldering numbers per string can be set by PC.
|
Product model |
SS-2500 |
|
Product capacity |
≥2400cell/hour |
|
Breakage Rate |
≤0.2%（A grade cells） |
|
Cell size available |
156-210mm*1/4-1/2 |
|
Cell inspection |

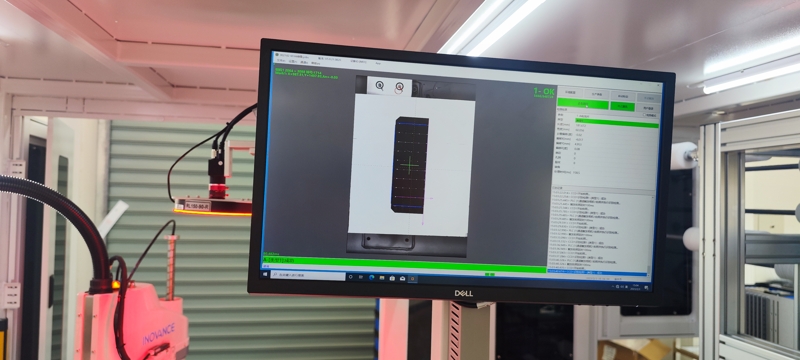

CCD camera detection (Busbar/missing corner) |
|
Bus Bar QTY Available |
3BB-20BB |
|
Cell thickness |
0.16-0.25mm |
|
Ribbon available |
Flat ribbon, width: 0.35-1.2mm; thickness: 0.15-0.25mm |
|
Soldering method |
IR heating soldering |
|
Flux coating method |
Soak of ribbon |
|
Soldering head |
2pcs |
|
Number of Cell Cassette |
5PCS，250PCS/cassette |
|
Equipment failure rate |
≤4% |
|
Time for changing Jigs |
≤40Min（average） |
|
Cell spacing |
1.5-10mm（depend on the cell size） |
|
Max string length |
2000mm |
|
Positioning method |
CCD camera+ Robot positioning |
|
Robot positioning accuracy |
±0.02mm |
|
Electrical system |
PLC+ touch screen+servo+module+robot |
|
Human-machine interface |
Touch screen display，friendly interface for easy operation. |
|
Fault alarm |
Real time fault alarm |
|
Device noise |
＜80db |
|
Power supply |
Three-phase five-wire，380VAC/50Hz |
|
Rated power |
20KW |
|
Air source |
6-8Bar：800L/min；Inlet pipe diameter：16mm |
|
Device dimension |
8200mm*1900mm*2300mm Working platform height: 900mm±25mm |
|
Weight |
4500Kg |
