Type:
Specification:

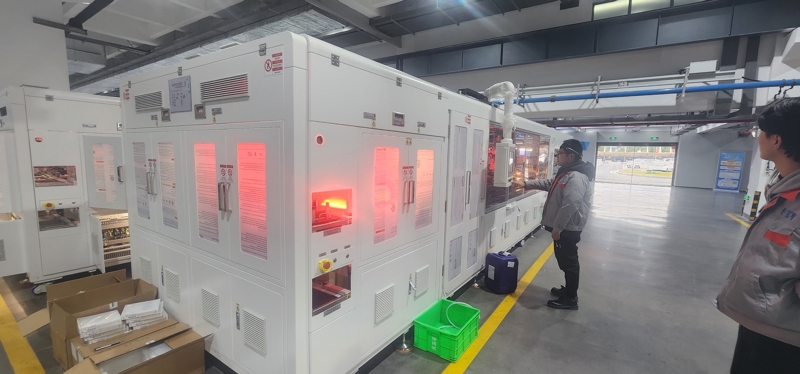

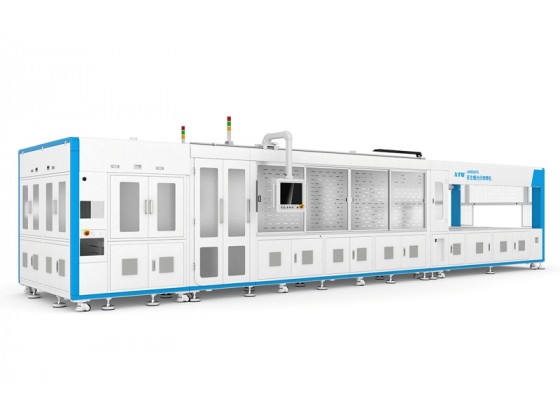

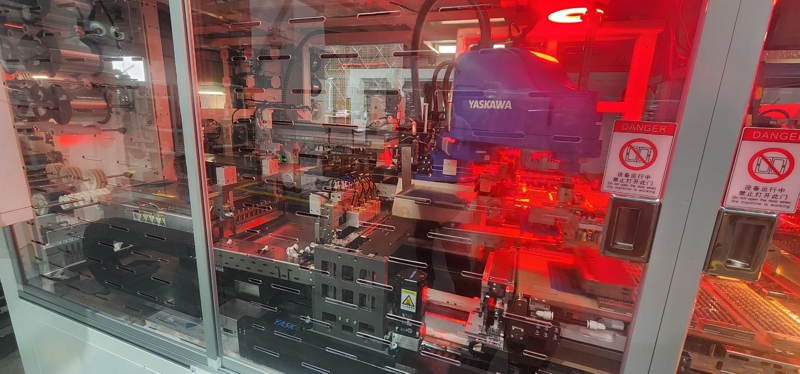

MBB solar cell tabber and stringer is a fully automatic machine used to non-destructively cut the mono-Si or poly-Si cells and then solder them into a string. Normally it can work with 156-230mm (3BB-20BB) cells. The cell cut module can cut cells in half, or cut cells into three strips after upgrade. The soldering module can be upgraded for 156-230mm (full, half-cut, 1/3-cut) cells. With the use of PLC, servo, SCARA robot, industrial image processor system and other advanced automation technology, the entire process from cell feed to string outlet is fully automated.
|
Item |
Specifications |
Description |
||
|
Traditional Cells |
MBB Cells |
|||
|
Basic Information |
Uptime |
≥95% |
(1 - unscheduled downtime/24H), unscheduled downtime refers to the time when the equipment malfunctions or is shut down unexpectedly. |
|
|
Speed |
18Xmm cells: 3BB-12BB Half-cut≥6800 strips/hour 18Xmm cells: 13BB-20BB Half-cut≥6000 strips/hour
230mm cells: 3BB-12BB Half-cut, 1/3-cut ≥6800 strips/hour 230mm cells: 13BB-20BB Half-cut, 1/3-cut ≥6000strips/hour |
The speed depends on the solder process. If the required solder time is too long, it may affect the production speed. |
||
|
Cell Cracks |
161mm to 171mm cells: Mono-Si ≤0.2%; 171mm to 230mm cells: Mono-Si ≤0.25%; |
Popular Grade A cell, thickness ≥170μm Cell crack ratio = (cracked cells + micro-cracked cells)/total number of soldered cells × 100% |
||
|
Average Laser Power |
50W/300W |
Laser for grooving/laser for heating |
||
|
Service Life/Warranty of Laser |
Warranty: 20,000 hours |
|
||
|
Defect Detection |
CCD |
|
||
|
Overall Positioning Accuracy |
Positioning deviation: ≤±0.05mm Angular deviation: ≤±0.04° Cutting accuracy: ≤±0.1mm |
|
||
|
Groove Length |
<1.5mm |
|
||
|
Groove Depth |
0-65% (adjustable) |
|
||
|
Flux Coating Method |
Soak of ribbon |
|
||
|
Soldering Method |
IR soldering |
|
||
|
Temp Control Accuracy |
±7.5℃ |
The upper/lower temp limits can be set on HMI; an alarm will be raised when the temp is out of the limit. |
||
