5-500MW solar panel making machines

High Quality Solar Panel Making Equipments and Solar Panel Manufacturing Equipments from Ooitech
Full automatic solar panel manufacturing assembly line Supplier and Factory

Get Free Solutions Get an Instant Quote

About ooitech solar

They Trust Us

Saatvik GroupGoldi SolarLA SolarWaaree Energies LtdLONGi SolarRayzon SolarJakson Group

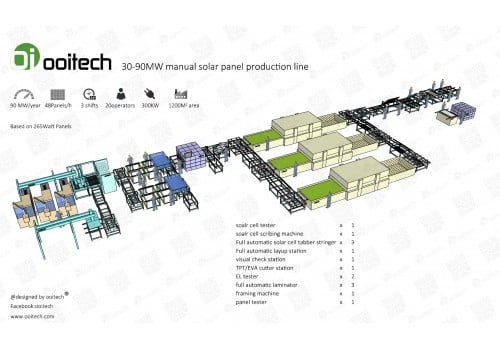

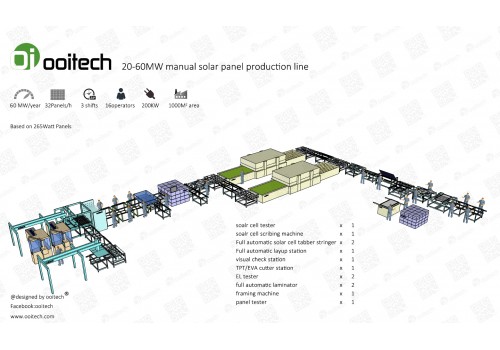

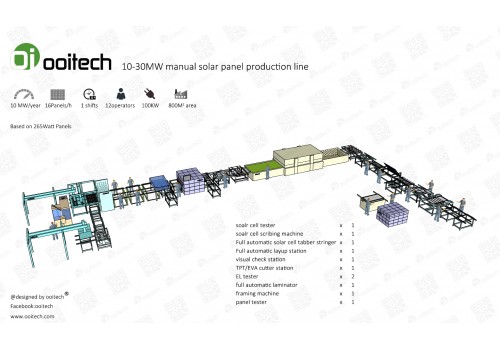

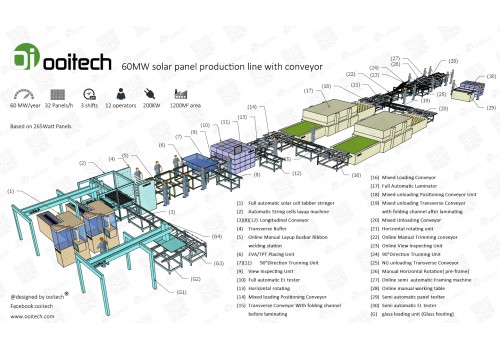

Solar Panel Making Machines diagram

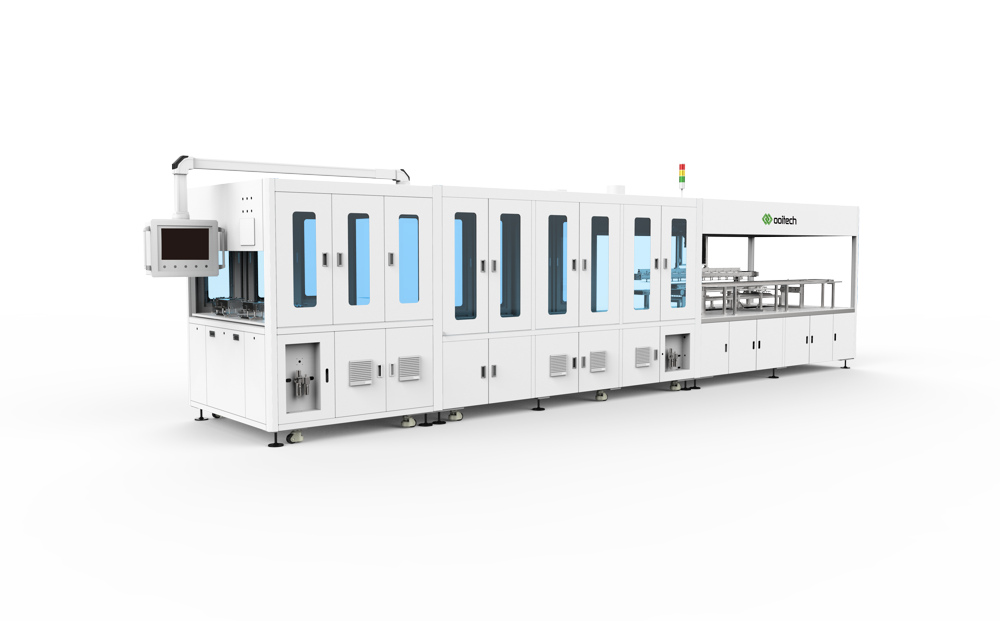

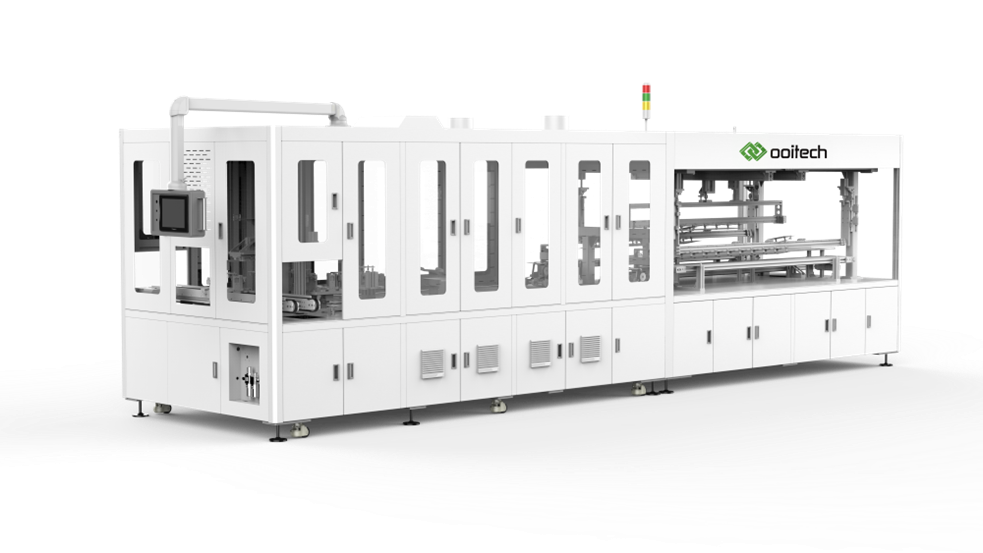

Back Contact Tabber Stringer
HPBC ABC XBC IBC Tabber Stringer Back Contact Tabber Stringer
Back Contact Tabber Stringer is suitable for welding BC series cell strings LONGI Solar Cell
Tabber Stringer
Tabber Stringer - Full Automatic Solar Cell Tabber Stringer Solar Cell String Welding Machine
Tabber stringer can weld 156-166mm.(Compatible with 1/2、1/3、1/4 cell soldering), speed is 1500 PCS/hour.
Layup
Solar Stringer Layup Machine - Solar Panel Production Line
Solar Stringer Layup Machine is used to Achieve solar string automatic laying on glass EVA.
EL Tester
EL Defect Tester of solar panel production
EL defect tester is used to identify layup errors, bad welding, pollution, micro-cracks, mixed cells and other invisible defects in solar modules.

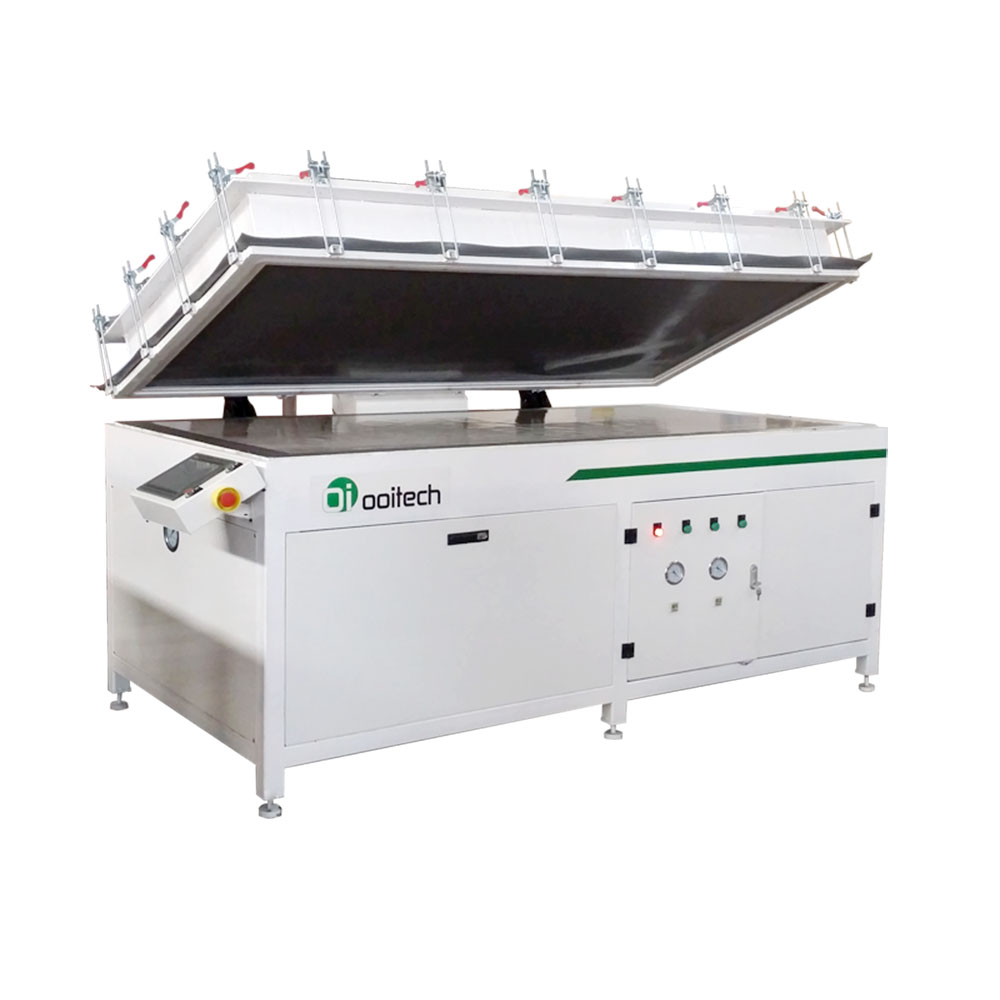

Solar Panel Laminating Machine
2345 Double Chamber Fully Automatic Solar Panel Laminating Machine of Solar Panel Production Line
Solar Panel Laminating Machine is one of the most critical processes in the solar panel manufacturing production flow, it ensures the quality of solar panel.
Trimming
Online manual solar panel Trimming
trim the edge of the solar panels, cut the extra parts like back sheets and eva.
Curing Room
Online automatically Curing Room
A constant temperature and humidity room for solar panel Curing, dry the silicone glue.
Framing and Glue
Online automatic solar panel framing machine and aluminum frame glue station
To glue the aluminum frame then install the aluminum frame automatically
IV and Insulation test
online panel Electrical performance tester and insulation tester and Insulation test
Use the solar panel tester to test the finished solar panel Electrical performance test like power, current, and test voltage insulation.

Pricing For solar panel making machines

Basic

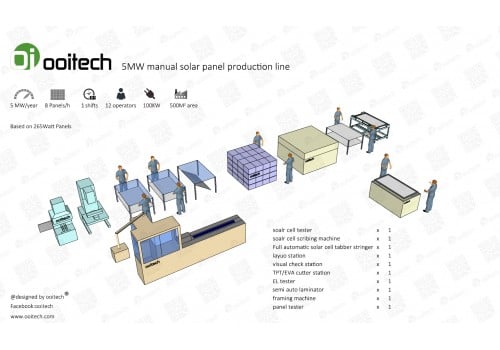

5MW PER YEAR

$9*,***.00 60 panels/day based on 8 hours
  • Semi automatic laminator
  • Semi automatic framing machines
  • Fiber laser cell cutting
  • tabber stringer (optional)
  • Sun simulator and EL tester
  • 10-15 workers
  • 500-800 square meters

Standard
20-50MW PER YEAR

$5**,***.00 up 240 PANELS/DAY BASED ON 8 HOURS
  • Full automatic tabber stringer
  • Full automatic layup station
  • Full automatic laminator
  • Full automatic EL tester
  • Full automatic conveyor
  • 20-30 workers
  • 1000-2000 square meters

Advanced

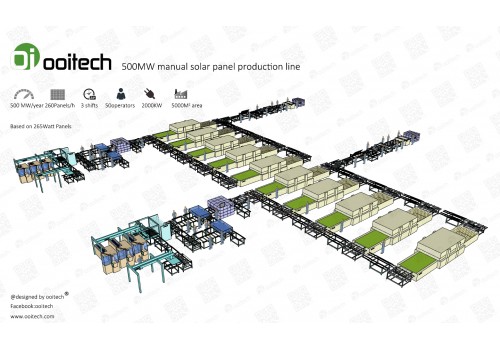

100-500MW PER YEAR

$1,***,***.00 up 1200 PANELS/DAY BASED ON 8 HOURS
  • Full automatic conveyor
  • Full automatic robot
  • Full automatic laminator
  • Full automatic EL tester
  • Total solutions for production line
  • up 50workers
  • 2000-5000 square meters

Latest project

10MW solar panel production line factory build in Egypt

"ooitech help us to build the solar factory, thank you"--Madgy from Egypt

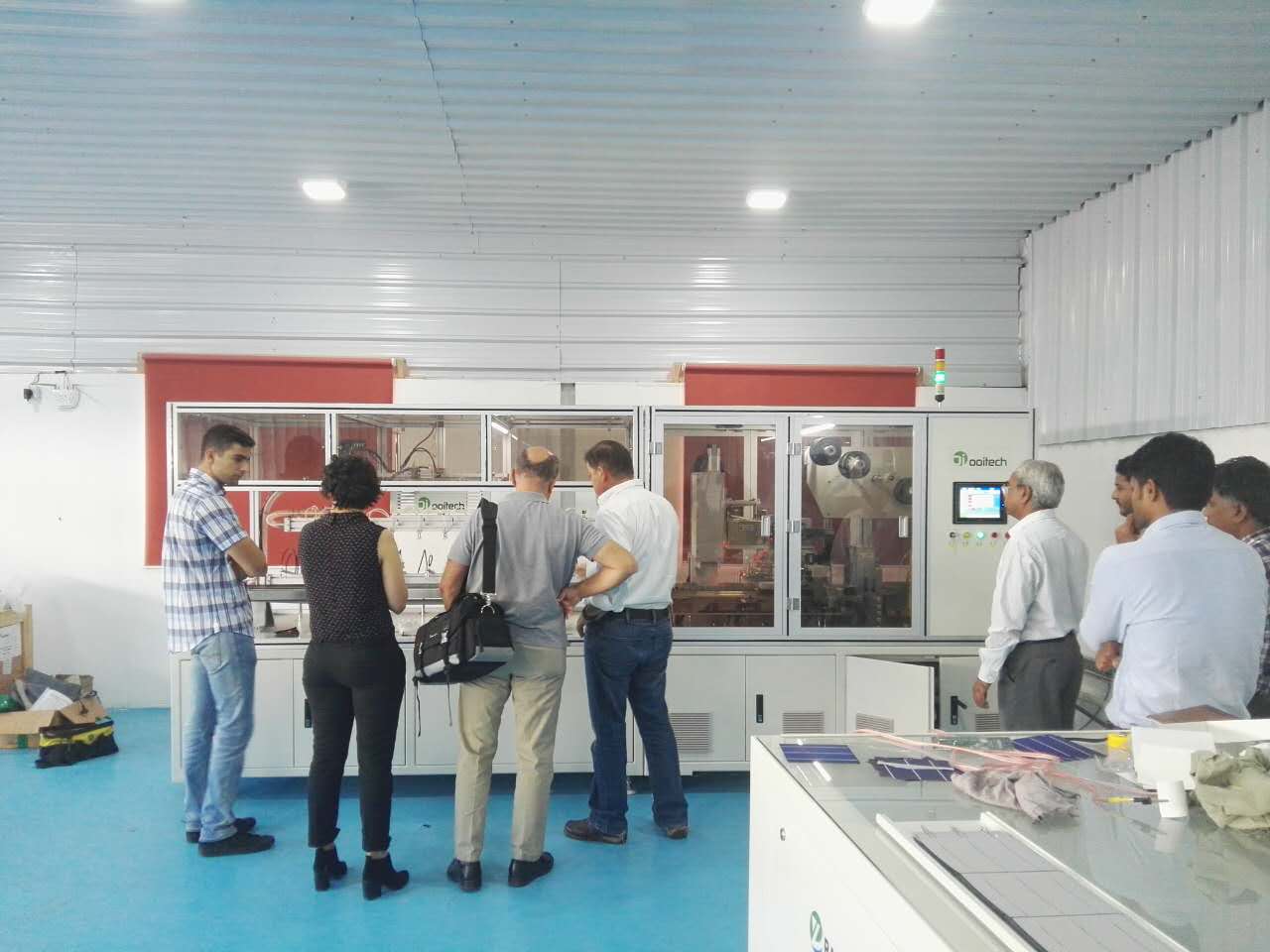

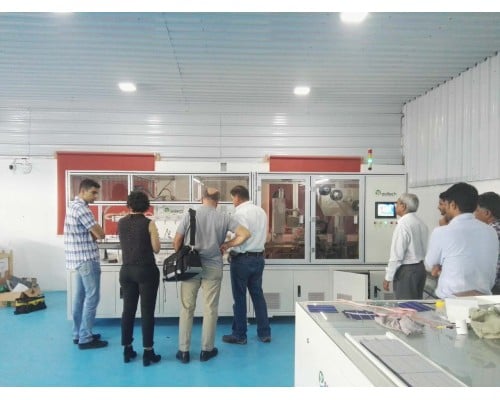

Bahrain full 10MW production line using automatic solar cell tabber stringer installation

Bahrain full 10MW production line using automatic solar cell tabber stringer installation

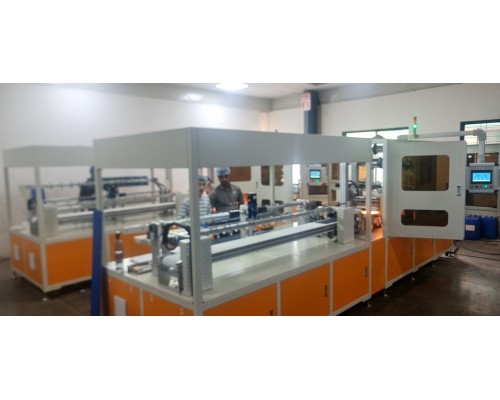

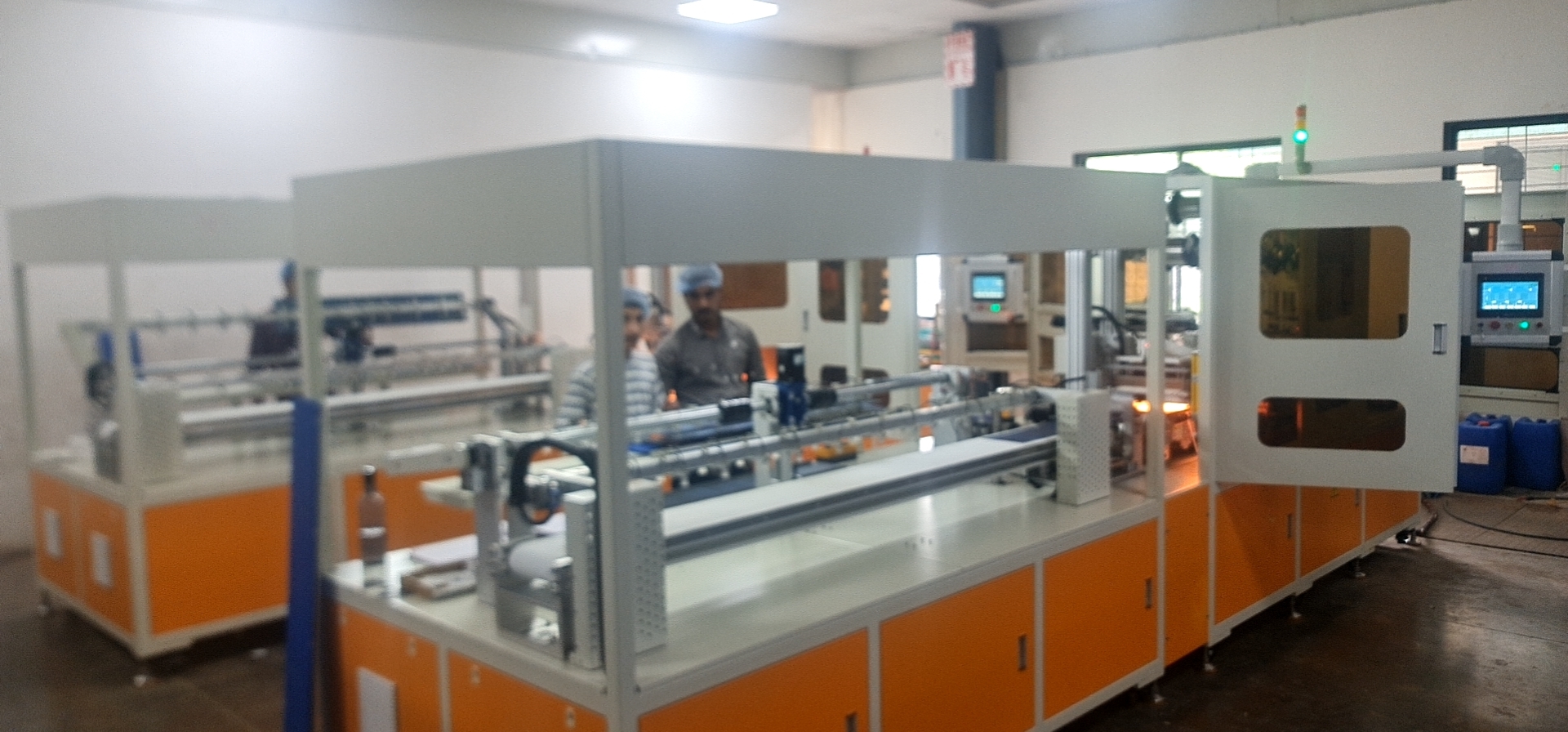

45MW [15MW/8H] solar panel manufacturing machines in India Hyderabad

45MW [15MW/8H] solar panel manufacturing machines in India Hyderabad

NDC(Non-destructive Laser cutting machine) in Australia Tindo Solar

NDC(Non-destructive Laser cutting machine) in Australia Tindo Solar

[4K] Solar Panel Manufacturing Process MBB Half Cell

[4K] Solar Panel Manufacturing Process MBB Half Cell

50

More Projects Finished

500

More MW Capacity

10

More Countries

24

Hours service

Check out the video!

Latest NEWS

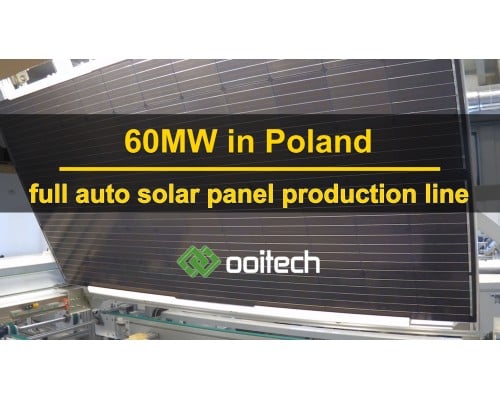

Ooitech 60MW Solar Panel  Manufacturing Equipement  Sent Overseas

Ooitech 60MW Solar Panel Manufacturing Equipement Sent Overseas

2023-06-06 14:48:17

Ooitech 60MW Solar Panel Manufacturing Equipement Sent Overseas

4 mins learning solar panel manufacturing process from A to Z

4 mins learning solar panel manufacturing process from A to Z

2022-09-29 08:04:53

4 mins learning solar panel manufacturing process from a to z

Why Solar Panels Can't Be Used Directly

Why Solar Panels Can't Be Used Directly

2023-09-25 10:01:01

Although solar panels are the core equipment of solar power generation systems, they cannot be used directly. Problems such as countercurrent, curren...

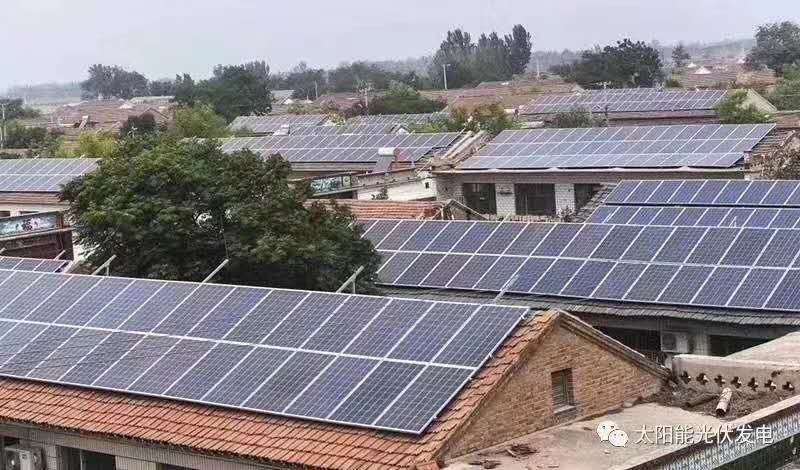

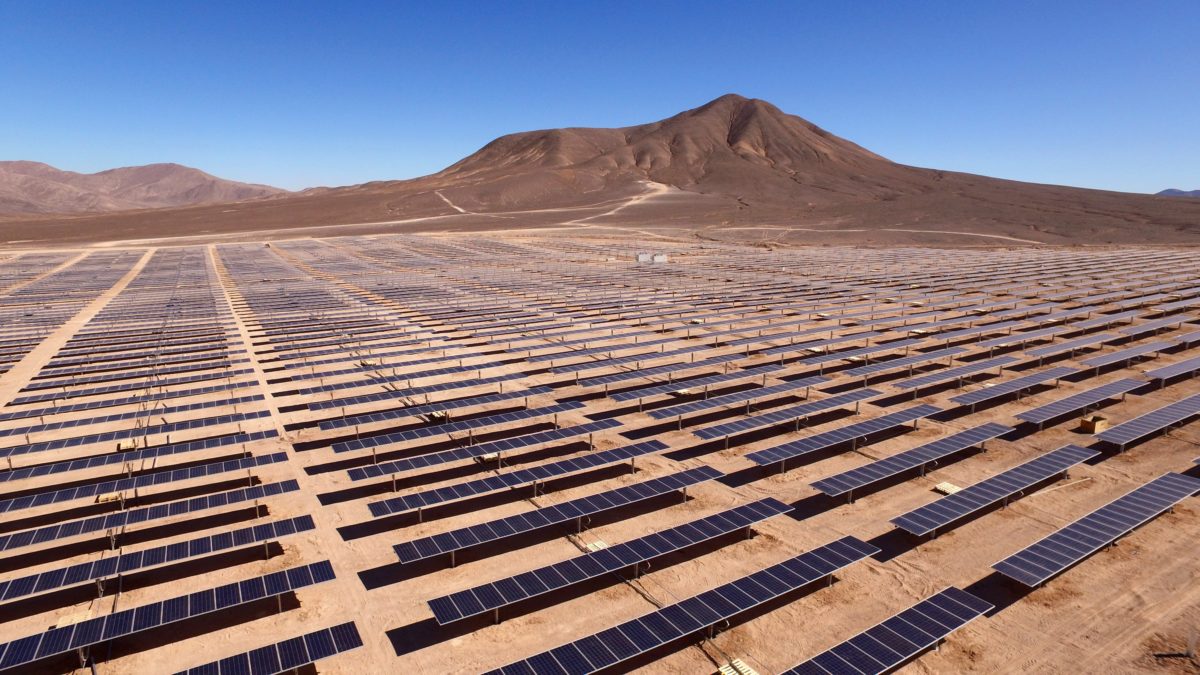

Bangladeshi solar installers have $1.5bn plan to light up health centers

Bangladeshi solar installers have $1.5bn plan to light up health centers

2020-06-16 18:30:07

The companies driving the solar home system boom in the nation, in part with the help of public money, wants Dhaka to authorize the addition of PV in...

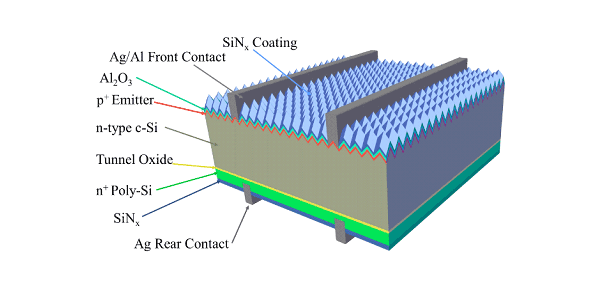

What Are the Standards for a Good Solar Panel?

What Are the Standards for a Good Solar Panel?

2024-09-25 09:46:57

This article explores the key standards that define a good solar panel, including efficiency, durability, quality assurance, temperature coefficient,...

New energy rules to clear the way for more battery and solar power

New energy rules to clear the way for more battery and solar power

2018-07-21 22:41:22

New energy rules to clear the way for more battery and solar power
