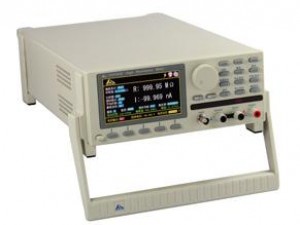

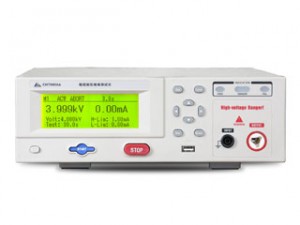

online panel Electrical performance tester and insulation tester and Insulation test

Type:

Specification:

Profile:

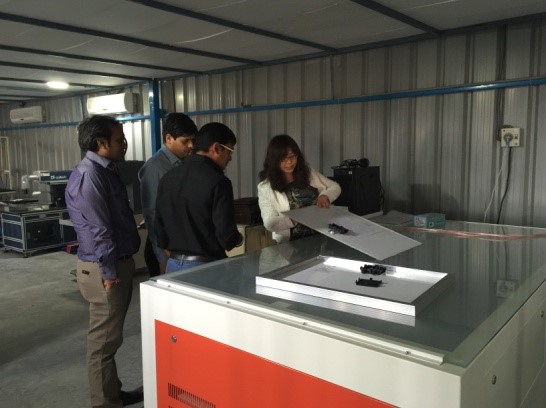

Use the solar panel tester to test the finished solar panel Electrical performance test like power, current, and test voltage insulation.

[ Machine Function ]

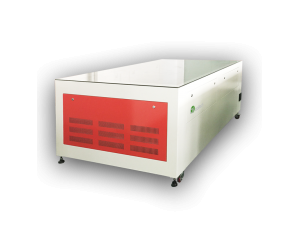

Use to test the electric performance of Mono-Si or Poly-Si solar modules and record the results in files.

[ Machine Features ]

four-line measurement,14-bit 4-channel high-speed synchronous acquisition card

10 parameters display, Measurement Parameter displays in Tabulation and Graphic way

Temperature automatically compensating

Voice counts off and prompts, Counting prompt of flash times

24 continuous work

import Xenon lamp

[ Technical Features ]

MODEL	OSMT-A	OSMT-B
Lamp spectrum	In line with iec60904-9 spectral Irradiance distribution requirement(AM1.5)
Light intensity	200m_1200W/M² continuous adjustable
Light intensity non-uniformity	≤±2% 【A】	≤±3%
Light intensity instability degree of irradiation(STI)	≤±0.5% 【A】	≤±2%
Light intensity instability degree of irradiation(LTI)	≤±2%	≤±2%
Test results consistency	≤±0.5%【A】	≤±1%
Single flash time	10ms~40ms	10ms
Effective test range	2000×1100mm /5W-300W
Measuring voltage	0-100V(resolution 1mV)
Measuring current	0-20A(resolution 1mA)
Power Supply	AC220V/50HZ/2KVA
Test parameters	Isc、Voc、Pmax、Vm、Im FF、EFF、Temp、Rs、Rsh
Xenon Lamp service time	200,000flash times	100,000flash times
Weight	600kgs	500kgs
